Arturia Chorus DIMENSION-D

While many chorus effects strive for dramatic, swirling movement, the Roland Dimension D—the inspiration for Arturia’s Chorus DIMENSION-D—is revered for the exact opposite: an incredibly subtle, yet vastly impactful spatial enhancement. This rack-mount classic from the late 1970s is the secret sauce behind countless professional mixes, valued for its ability to add stereo width, depth, and a gorgeous, three-dimensional shimmer without the obvious pitch warbling or thickness associated with typical chorus units.

The Magic of Static Delays

The Dimension D achieves its unique, transparent sound by deviating from the standard chorus design. Instead of relying on a wide-ranging, deep Low Frequency Oscillator (LFO) to modulate the delay time, the Dimension D utilizes very shallow, phase-shifting modulation combined with a series of parallel, static delay lines.

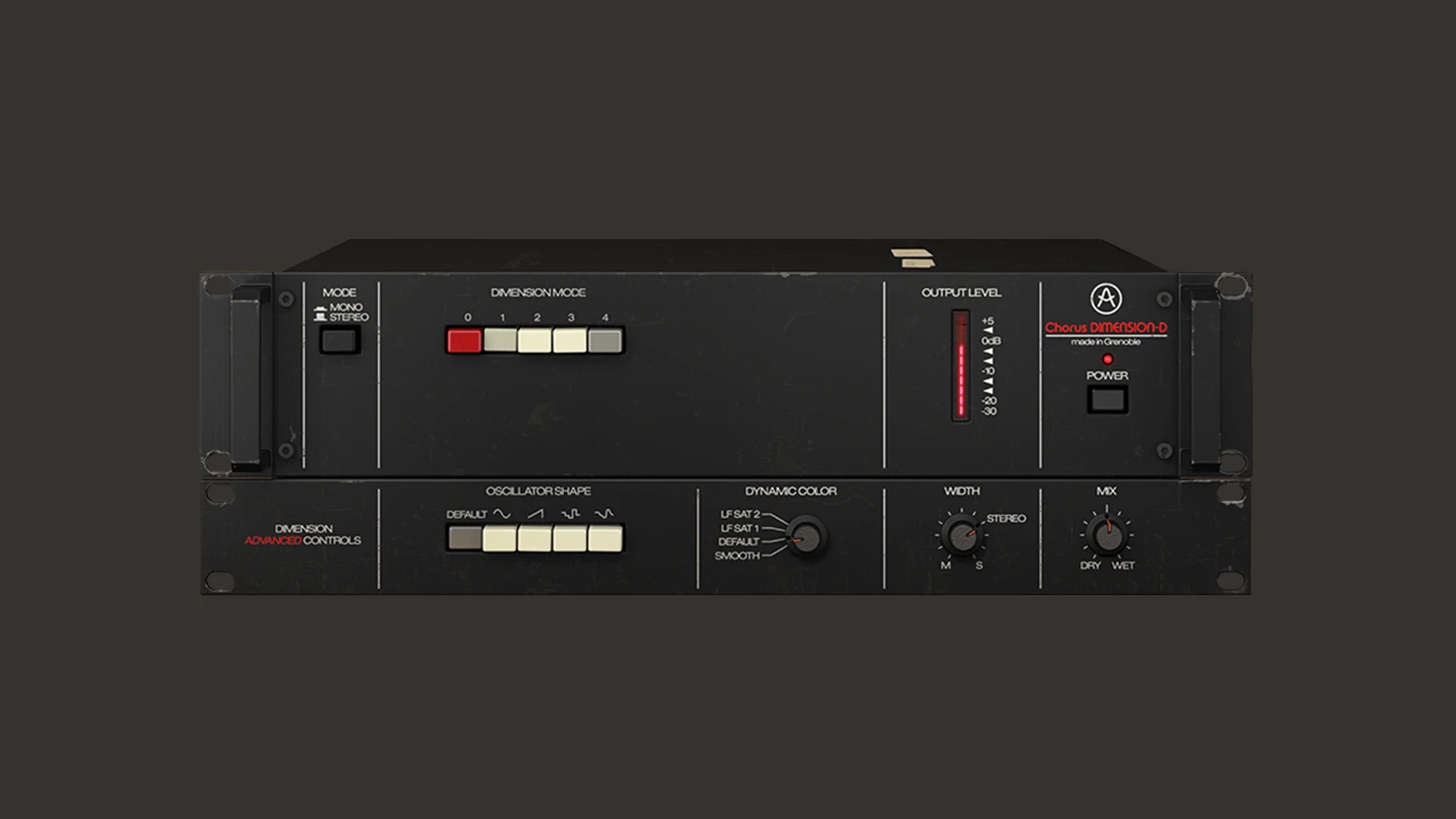

The plugin’s core interface reflects the original’s simplicity: four main buttons, each engaging a different preset combination of these delay and phase circuits. These buttons are not just different speeds; they engage entirely different pathways, offering distinct flavors of spatial enhancement:

• Mode 1: Provides the most subtle effect, perfect for delicate width and a slight stereo movement.

• Mode 2: A slightly deeper, yet still restrained, movement that adds noticeable depth to vocals and pads.

• Mode 3: Offers the fullest and most intense chorus effect, ideal for making guitars or synthesizers fill the entire stereo image.

• Mode 4: A unique, complex combination of the internal circuits that produces a rich, highly spatialized sound without becoming overly dominant.

The beauty of the DIMENSION-D sound is its mono compatibility. Because the phase and delay movements are so slight, the widening effect tends to collapse gracefully to mono, preventing the severe cancellations that plague many other stereo choruses.

Beyond the Four Buttons

While the four preset buttons capture the authentic vintage sound, Arturia has extended the functionality to meet the needs of modern production, ensuring the plugin remains a versatile utility effect:

• Input Filter: A crucial addition that allows users to clean up the low-end of the input signal before it hits the chorus circuit. This prevents the phase modulation from muddying the mix and ensures the spatial effect only acts on the frequencies that truly benefit from stereo movement.

• Output Filter: Offers control over the high-end, allowing the user to dial back any excessive brightness or hiss inherent in the emulation of the analog Bucket Brigade Device (BBD) circuits.

• Mid/Side Mode: A powerful creative tool that allows the user to apply the spatial widening effect exclusively to the Side channel of a stereo signal, leaving the center (Mid) untouched. This preserves the mono integrity of elements like the bass and lead vocal while still making the track sound massive.

Arturia’s Chorus DIMENSION-D excels where transparency and subtle width are paramount. It’s the ultimate secret weapon for achieving that polished, professional shimmer and making any sound source feel effortlessly expansive and alive in the stereo field.
