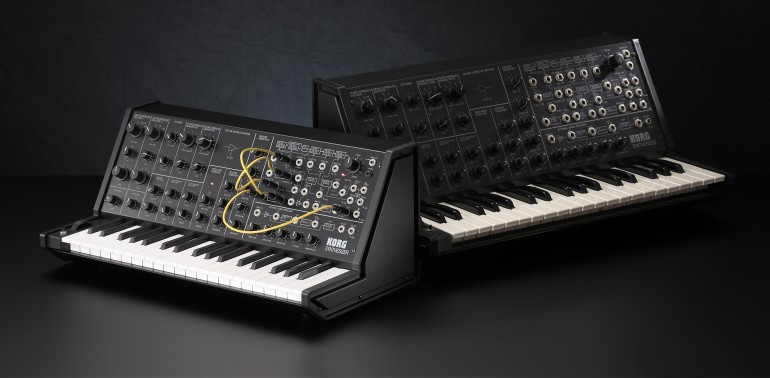

KORG MS-20

The KORG MS-20, first released in 1978, is not just a synthesizer; it is a sonic icon that has defined the "aggressive" side of electronic music for nearly half a century. While its contemporaries like the Minimoog were praised for their creamy, smooth textures, the MS-20 gained a cult following for its raw, snarling, and often unpredictable character. It is a monophonic semi-modular powerhouse that remains a staple in the studios of everyone from Daft Punk to Aphex Twin.

The Architecture of Grit

What makes the MS-20 truly unique is its signal path. It features two oscillators (VCOs) with ring modulation, but the "secret sauce" lies in its dual-filter design. Unlike most synthesizers that provide a single low-pass filter, the MS-20 features both a High-Pass Filter (HPF) and a Low-Pass Filter (LPF) connected in series.

These filters are notoriously resonant. When you crank the "Peak" (resonance) controls on both, the filters begin to self-oscillate, creating piercing, distorted screams that are perfect for industrial, techno, and experimental soundscapes. This dual-filter arrangement allows for "band-pass" filtering, where the designer can carve out a specific frequency range with surgical—and often dirty—precision.

The Semi-Modular Advantage

To the right of the knobs lies the MS-20’s most intimidating but rewarding feature: the Patch Panel. While the synthesizer has a hard-wired "normalled" signal path (meaning it produces sound without any patch cables), the panel allows you to "break" those connections and reroute signals.

You can use the External Signal Processor (ESP) to plug in a guitar or a microphone, using the volume or pitch of an external instrument to trigger the synthesizer's filters and envelopes. This makes the MS-20 one of the most versatile processors in history, capable of transforming a mundane drum loop into a chaotic, distorted rhythmic sequence.

A Legacy of Rebirth

The MS-20’s impact was so profound that KORG has re-released it in several forms over the last decade. The MS-20 Mini brought the original circuitry to a smaller, more affordable format with MIDI and USB connectivity. The MS-20 FS (Full Size) restored the original dimensions and build quality, even including the two different filter revisions (the "KORG35" and the later, slightly cleaner OTA version) so purists could choose their preferred flavor of grit.

The "Distant" Controls: Envelopes and LFO

The MS-20 utilizes a slightly unusual envelope structure. Instead of the standard ADSR (Attack, Decay, Sustain, Release), it features an Envelope Generator 1 (DAR) and an Envelope Generator 2 (HADSR). The addition of a "Hold" parameter allows for unique rhythmic gating effects, while the "Frequency Modulation" allows the LFO (labeled "M.G." or Modulation Generator) to create everything from subtle vibrato to extreme FM "clangs."

Conclusion

The KORG MS-20 is a masterclass in personality. It is not a polite instrument; it is a machine that demands to be pushed to its limits. Its enduring popularity in 2025 is a testament to its tactile interface and its ability to provide "analog chaos" in an increasingly digital world. Whether you are looking for a deep, rumbling bass or a screeching lead that cuts through a dense mix, the MS-20 remains the undisputed king of the underground.
