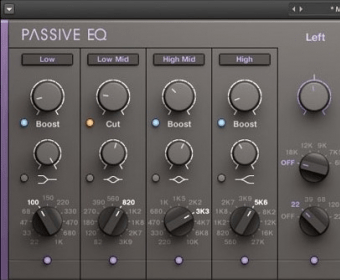

Native Instruments Passive EQ

Native Instruments Passive EQ is a conceptual software effect plugin engineered as an advanced, highly specialized passive equalization unit dedicated to capturing the broad, musical curves, deep low-frequency interaction, and unparalleled high-frequency "air" of legendary vintage passive EQs (like the Pultec EQP-1A or similar inductor-based designs).¹ Moving far beyond the surgical capabilities of digital parametric EQs, Passive EQ is designed as a definitive tonal sculptor, excelling at imparting warm analog color, subtle dimensional depth, and smooth, non-fatiguing high-end presence across subgroups and the master bus. It is the essential resource for mixing and mastering engineers seeking musical tone shaping with the transparent warmth of classic, non-active circuitry.²

The Architecture of Inductor Warmth

The core strength of Passive EQ lies in its meticulous modeling of the inductor and transformer-based filtering, which defines the unit's unique musical response:

• Inductor-Based Curves: The plugin models the complex filtering network based on inductors and capacitors. These components naturally create extremely wide, gentle bell curves and shelves. This behavior is highly valued because large boosts or cuts can be applied without sounding overly aggressive or artificial; instead, the adjustments feel spread across the entire spectrum, enhancing the musicality of the source.

• Low-End Interplay (The Trick): The defining feature of this topology is the Low-Frequency Interaction. The plugin allows the user to simultaneously boost and cut the same low frequency (e.g., $30 \text{ Hz}$ or $60 \text{ Hz}$). Because the boost and cut circuits operate on slightly different response curves and timings, the resulting effect is a unique, powerful, and controlled punch: a resonant boost at the chosen frequency is achieved, while the muddy sub-harmonics are simultaneously attenuated. This creates low-end that is both massive and tight.

• The High-Frequency "Air": The high-frequency boost section is modeled to roll off gently after the boost peak. This natural attenuation, combined with the modeled transformer-coupled output stage, ensures that the added high-end is perceived as silky, non-abrasive "air" and sparkle, rather than harsh digital brightness—a crucial characteristic for high-end polish.

Versatility and Mix Cohesion

Passive EQ is engineered for broad, cohesive tonal adjustment and analog warmth injection across full mixes:³

• Tubes and Transformers: Although the filtering section is "passive," the plugin models the necessary tube-based makeup amplifier that follows the passive circuit. This tube stage introduces subtle, constant even-order harmonics and gentle dynamic compression, adding the final layer of analog warmth, density, and "glue" to the processed signal.

• The "Bandwidth" Control: The bandwidth knob controls the Q-factor (width) of the boost curve. While the curves are inherently wide, this control allows the engineer to slightly focus the peak of the boost, offering flexibility in achieving either extremely subtle tonal shading or more prominent sonic enhancements.

• Master Bus Application: Passive EQ is a primary tool for the master bus. Its unique ability to add warm density to the low end and transparent air to the top end without introducing phase smear makes it an ideal tool for gently lifting a mix, providing a final layer of analog polish and dimension before limiting.

Native Instruments Passive EQ is the essential modern tool for classic tonal shaping, providing a powerful, transparent, and musically rich platform that delivers the smooth curves, authoritative low-end, and silky high-frequency polish of vintage passive equalization to any digital production.
